Architecture

Azure infrastructure and deployment architecture for the Octo E-Shop platform.

Infrastructure and deployment architecture for the Octo E-Shop platform on Microsoft Azure.

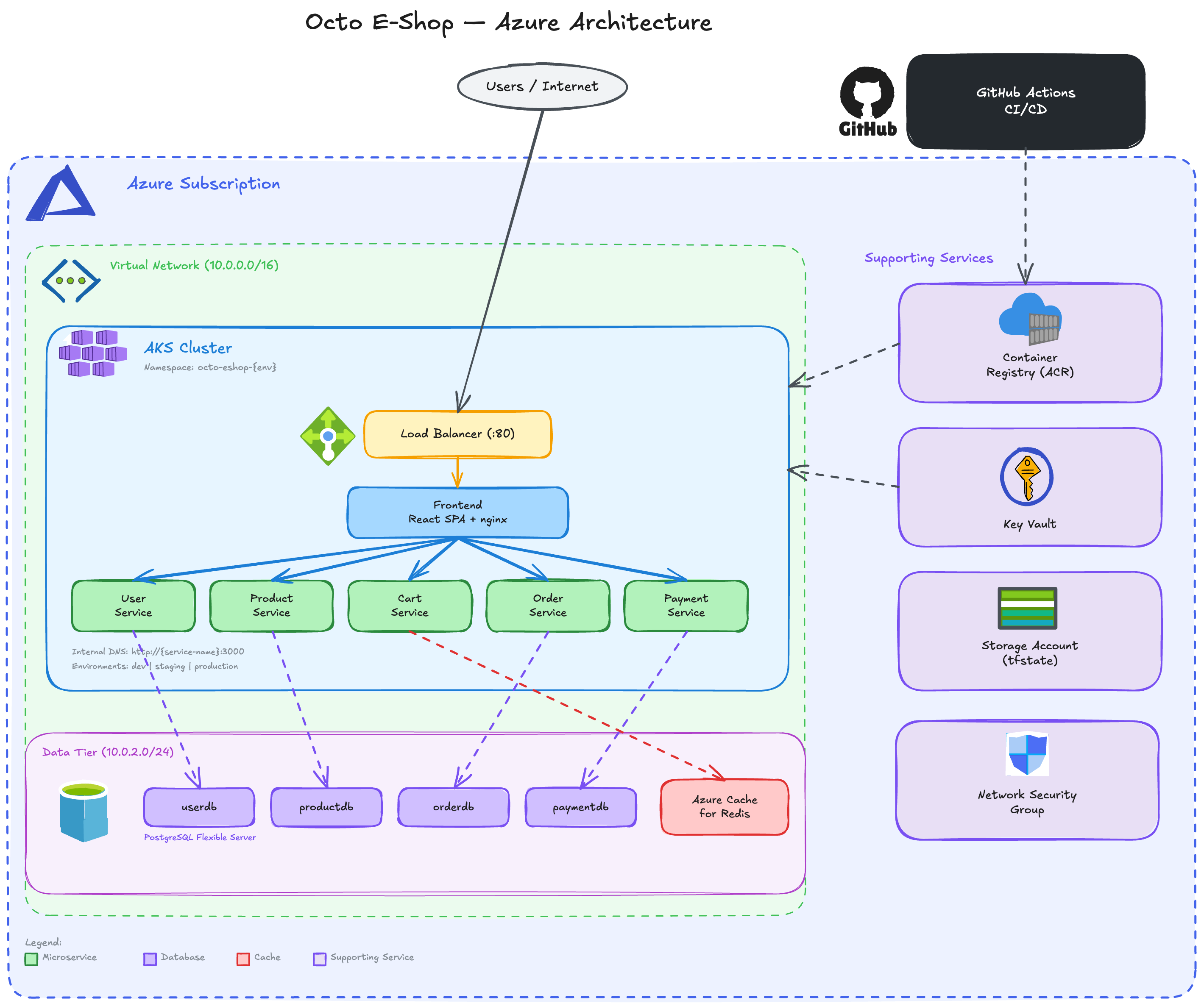

Azure Architecture

Overview

The Octo E-Shop platform runs on Azure Kubernetes Service (AKS) with a full suite of managed Azure services. Infrastructure is provisioned via Terraform and deployed across three environments: dev, staging, and production.

Azure Services

Service Purpose
Azure Kubernetes Service (AKS) Container orchestration for all microservices
Azure Container Registry (ACR) Private Docker image registry
Azure Database for PostgreSQL Managed databases for user, product, and order services
Azure Cache for Redis Session and cart data store
Azure Service Bus Asynchronous messaging between services
Azure Key Vault Secrets and certificate management
Azure Storage Account Terraform state backend and static assets
Azure Log Analytics & Application Insights Monitoring, logging, and diagnostics
Network Security Groups (NSG) Network-level access control
Azure Load Balancer Public ingress for the frontend

Network Architecture

Each environment is deployed into its own Virtual Network (VNet) with dedicated subnets:

Subnet Dev Staging Production Purpose
AKS Subnet 10.0.1.0/24 10.10.1.0/24 10.20.1.0/24 Kubernetes node pool
Database Subnet 10.0.2.0/24 10.10.2.0/24 10.20.2.0/24 PostgreSQL flexible servers (delegated)
Redis Subnet 10.0.3.0/24 10.10.3.0/24 10.20.3.0/24 Azure Cache for Redis

Network Policies (Kubernetes-level) restrict pod-to-pod communication and egress to database subnets. NSG rules control network-level access at the Azure layer.

Environment Sizing

Resource Dev Staging Production
AKS Nodes 1 × Standard_D2s_v3 2 × Standard_D2s_v3 3 × Standard_D4s_v3
PostgreSQL B_Standard_B1ms B_Standard_B1ms GP_Standard_D4s_v3 (Zone Redundant HA)
Redis Basic/C0 Basic/C0 Premium/P1
ACR Basic Standard Premium

Infrastructure as Code

All infrastructure is managed with Terraform using a modular structure:

infrastructure/terraform/
├── modules/
│   ├── aks/            # Kubernetes cluster
│   ├── acr/            # Container registry
│   ├── postgresql/     # Database servers
│   ├── redis/          # Cache instances
│   ├── networking/     # VNet, subnets, NSGs
│   ├── keyvault/       # Secrets management
│   ├── servicebus/     # Message bus
│   ├── storage/        # Storage accounts
│   └── monitoring/     # Log Analytics + App Insights
└── environments/
    ├── dev/
    ├── staging/
    └── production/

State is stored remotely in Azure Storage with Azure AD authentication.

Bootstrap

The Terraform state backend and Azure service principal are created by a one-time bootstrap script:

Terminal window
./scripts/bootstrap-backend.sh --subscription <sub-id> --repo <owner/repo>

Provisioning

Terminal window
# Plan changes (safe — no modifications)
gh workflow run infrastructure.yml -f environment=dev -f action=plan


# Apply after reviewing
gh workflow run infrastructure.yml -f environment=dev -f action=apply

Cluster Add-Ons

After Terraform provisions the AKS cluster, the cluster-setup.yml workflow installs:

Component Purpose
ingress-nginx Kubernetes Ingress controller for HTTP routing
External Secrets Operator Syncs secrets from Azure Key Vault to Kubernetes secrets
ClusterSecretStore Connects ESO to Azure Key Vault via workload identity
Managed Identity + Fed Cred Enables passwordless authentication from ESO to Key Vault

Security

  • Secrets: Stored in Azure Key Vault, synced to GitHub Environment secrets and Kubernetes secrets
  • Network: NSG rules + Kubernetes NetworkPolicies restrict traffic per environment
  • Registry: ACR credentials automatically synced to GitHub secrets
  • Authentication: Azure service principal with RBAC, AKS workload identity for Key Vault
  • Scanning: Trivy container vulnerability scanning in CI pipeline
